BGP neighborship drops when NAT is enabled

Hi viewers, in this post we will be discuss a scenario where eBGP neighborship across 2 BGP enabled Routers dropped on enabling NAT Overload on same Router.

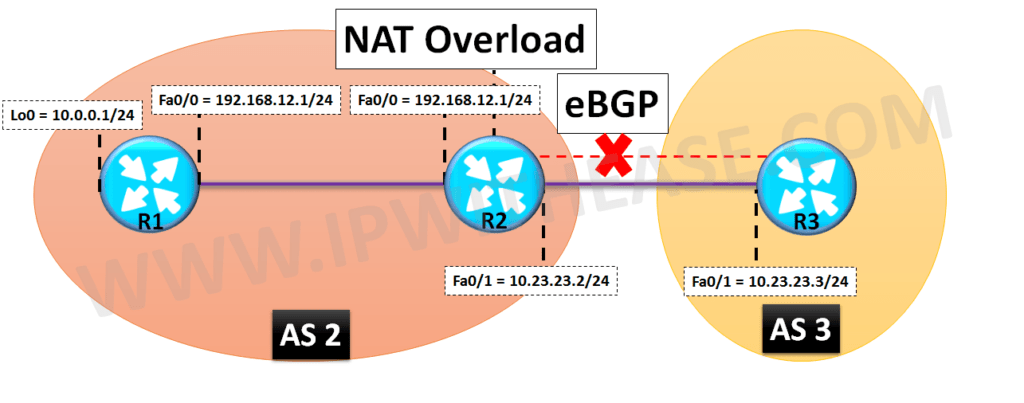

Diagrams below depicts the connectivity across Router R1, R2 and R3.

While R1 and R2 will have static Route for reachability, R2 and R3 will form eBGP neighborship between AS 2 and AS3 respectively. Also, network 10.0.0.0/8 (Behind R1 and shown as Loopback0 for test scenario) will be NATted with Inside Global IP of 200.200.200.1 on R2.

The base configuration across R1, R2 and R3 is as shown below –

R1

hostname R1

!

interface Loopback0

ip address 10.0.0.1 255.255.255.0

!

interface FastEthernet0/0

ip address 192.168.12.1 255.255.255.0

!

ip route 0.0.0.0 0.0.0.0 192.168.12.2

!

End

R2

hostname R2

!

interface FastEthernet0/0

ip address 192.168.12.2 255.255.255.0

ip nat inside

!

interface FastEthernet0/1

ip address 10.23.23.2 255.255.255.0

ip nat outside

!

ip route 0.0.0.0 0.0.0.0 10.23.23.3

ip route 10.0.0.0 255.255.255.0 192.168.12.1

!

ip nat pool NATPOOL 200.200.200.1 200.200.200.1 prefix-length 24

ip nat inside source list 1 pool NATPOOL overload

!

access-list 1 permit 10.0.0.0 0.255.255.255

!

End

R3

hostname R3

!

interface Loopback0

ip address 3.3.3.3 255.255.255.0

!

interface FastEthernet0/1

ip address 10.23.23.3 255.255.255.0

!

!

ip route 0.0.0.0 0.0.0.0 10.23.23.2

!

end

Now that we have NAT Overload in place (10.0.0.0/8 gets NATted to 200.200.200.1) ,next step is to configure BGP across R2 and R3 as below –

R2

router bgp 2

no synchronization

bgp log-neighbor-changes

network 10.23.23.0 mask 255.255.255.0

neighbor 10.23.23.3 remote-as 3

no auto-summary

R3

router bgp 3

no synchronization

bgp log-neighbor-changes

network 10.23.23.0 mask 255.255.255.0

neighbor 10.23.23.2 remote-as 2

no auto-summary

After configuring eBGP, still both Routers are showing neighborship as “Active” as below –

R3(config)#do sh ip bgp summ

BGP router identifier 3.3.3.3, local AS number 3

BGP table version is 2, main routing table version 2

1 network entries using 117 bytes of memory

1 path entries using 52 bytes of memory

2/1 BGP path/bestpath attribute entries using 248 bytes of memory

0 BGP route-map cache entries using 0 bytes of memory

0 BGP filter-list cache entries using 0 bytes of memory

BGP using 417 total bytes of memory

BGP activity 3/2 prefixes, 4/3 paths, scan interval 60 secs

Neighbor       V   AS MsgRcvd MsgSent   TblVer InQ OutQ Up/Down State/PfxRcd

10.23.23.2     4     2     290        295                0         0       0      00:02:25 Active

R2#sh ip bgp summary

BGP router identifier 192.168.12.2, local AS number 2

BGP table version is 2, main routing table version 2

1 network entries using 117 bytes of memory

1 path entries using 52 bytes of memory

2/1 BGP path/bestpath attribute entries using 248 bytes of memory

0 BGP route-map cache entries using 0 bytes of memory

0 BGP filter-list cache entries using 0 bytes of memory

BGP using 417 total bytes of memory

BGP activity 2/1 prefixes, 3/2 paths, scan interval 60 secs

Neighbor       V   AS MsgRcvd MsgSent   TblVer InQ OutQ Up/Down State/PfxRcd

10.23.23.3     4     3     290         291            0             0      0      00:03:11    Active

Let’s take help of debug command to troubleshoot why BGP neighborship is not forming.

To stop unwanted traffic from being captured in debug , we take help of access list as below –

R3(config)#access-list 100 permit tcp any host 10.23.23.3 eq bgp

R3#debug ip packet 100 detail

*Mar 1 08:51:47.301: IP: s=200.200.200.1 (FastEthernet0/1), d=10.23.23.3, len 44, rcvd 0

*Mar 1 08:51:47.305:     TCP src=21387, dst=179, seq=4006275843, ack=0, win=16384 SYN

R3#

As seen from output of debug command, the source forming neighborship with R3 IP 10.23.23.3 is 200.200.200.1 and not 20.23.23.2. On further analysis , we get to know that Source IP (R2 Fa0/1) 10.23.23.2 is being also being NATted to 200.200.200.1 which should not be the case.

To overcome this situation , we need to change the source list used for nat (in this case access list 1) to exclude interface fa0/1 of R2 (10.23.23.2) as below –

R2(config-std-nacl)#5 deny 10.23.23.0 0.0.0.255

R2(config-std-nacl)#

R2(config-std-nacl)#do sh access-list

Standard IP access list 1

5 deny   10.23.23.0, wildcard bits 0.0.0.255 (4 matches)

10 permit 10.0.0.0, wildcard bits 0.255.255.255 (320 matches)

Once configured , lets verify the neighborship status as below –

R2#sh ip bgp summ

BGP router identifier 192.168.12.2, local AS number 2

BGP table version is 2, main routing table version 2

1 network entries using 117 bytes of memory

2 path entries using 104 bytes of memory

3/1 BGP path/bestpath attribute entries using 372 bytes of memory

1 BGP AS-PATH entries using 24 bytes of memory

0 BGP route-map cache entries using 0 bytes of memory

0 BGP filter-list cache entries using 0 bytes of memory

BGP using 617 total bytes of memory

BGP activity 2/1 prefixes, 4/2 paths, scan interval 60 secs

Neighbor       V   AS MsgRcvd MsgSent   TblVer InQ OutQ Up/Down State/PfxRcd

10.23.23.3     4     3     363         364            2           0       0       00:08:55       1

R3#sh ip bgp summ

BGP router identifier 3.3.3.3, local AS number 3

BGP table version is 2, main routing table version 2

1 network entries using 117 bytes of memory

2 path entries using 104 bytes of memory

3/1 BGP path/bestpath attribute entries using 372 bytes of memory

1 BGP AS-PATH entries using 24 bytes of memory

0 BGP route-map cache entries using 0 bytes of memory

0 BGP filter-list cache entries using 0 bytes of memory

BGP using 617 total bytes of memory

BGP activity 3/2 prefixes, 5/3 paths, scan interval 60 secs

Neighbor       V   AS MsgRcvd MsgSent   TblVer InQ OutQ Up/Down State/PfxRcd

10.23.23.2     4     2     363        368             2           0      0        00:08:39       1

The eBGP neighborship is now up and able to receive Routes from neighbors.

Hence, as verified from the troubleshooting exercise, Source Subnet to be NATTed may disrupt with the BGP neighborship if both are using overlapping IP address. To mitigate this condition, we need to deny eBGP subnet from Source list (Access list) for NAT overload.
